Quality Guaranteed Cold Storage Room Warehouse Rack for New energy Industry

Customization: Available
After-sales Service: Lifetime Technical Support
Warranty: One Year

Product Description

Basic Specifications

Model NO.
TRS-COLD
Usage
Beverage, Food, Industrial, Warehouse Rack
Material
High Grade Steel
Structure
Compact Storage Rack
Type
Radio Pallet Shuttle
Height
5-15m
Load Weight
Up to 2000kg
Temperature
50 to -30 Degree
Certificate
ISO9001, CE, TUV
Finish
Powder Coating / Galvanized

Product Overview

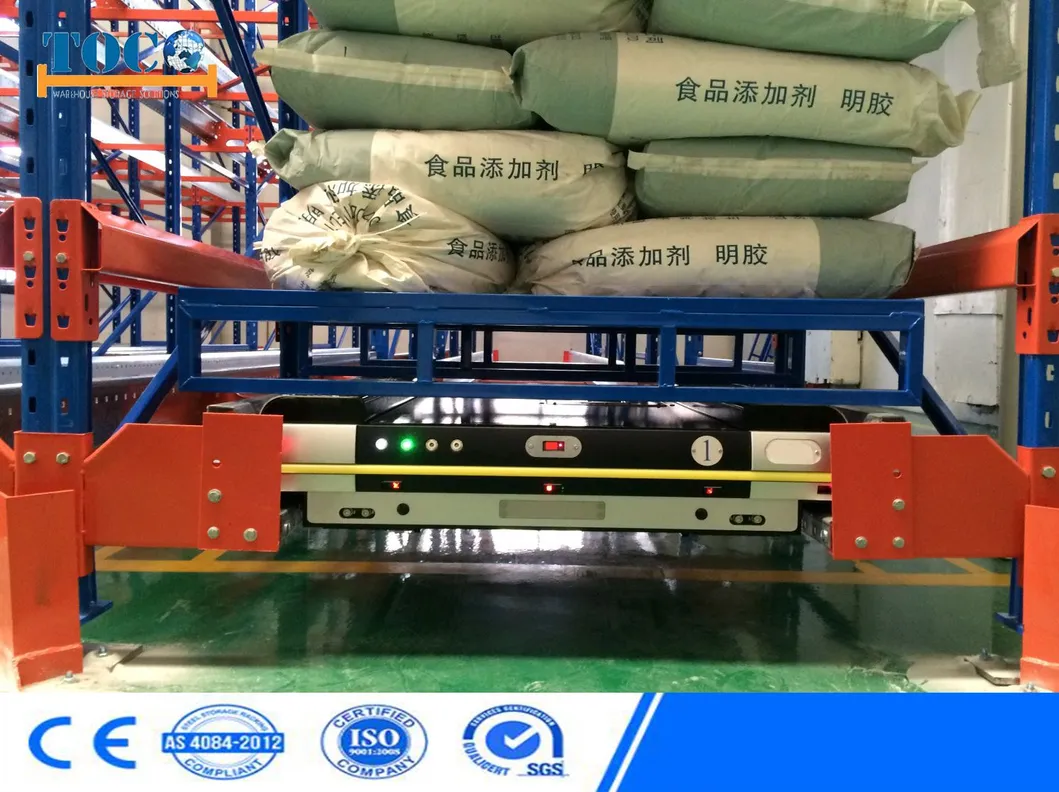

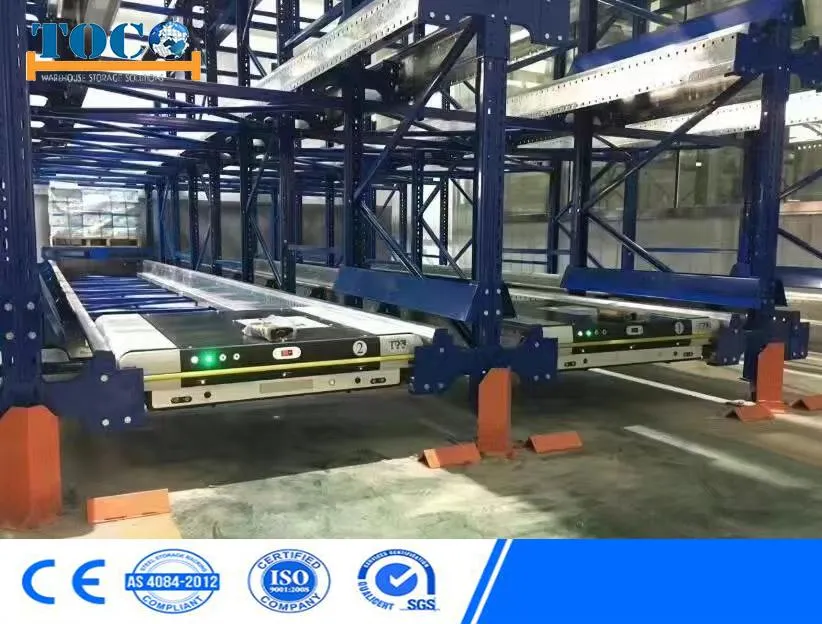

Radio Pallet Shuttle Shelving Systems are energy efficient, requiring only 3 hours of battery charging to maintain 8 hours of continuous operation. Designed for extreme environments, these systems perform reliably in temperatures ranging from 50°C down to -30°C. The Semi-Automated Shuttle Systems utilize forklifts and are modular, allowing for easy conversion to fully automated systems as your business and labor requirements evolve.

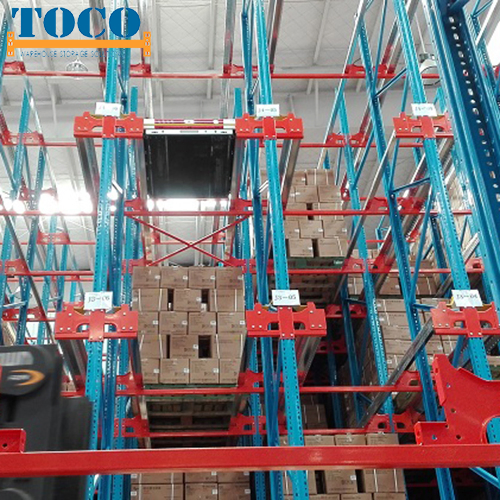

Shuttle Channel Racking for High Throughput: This system offers high throughput performance during the complete filling and emptying of pallet channels. It ensures collision-free storage and retrieval while optimizing space by reducing the number of operation aisles needed. The low height utilization per channel level allows for effective use of available vertical storage space.

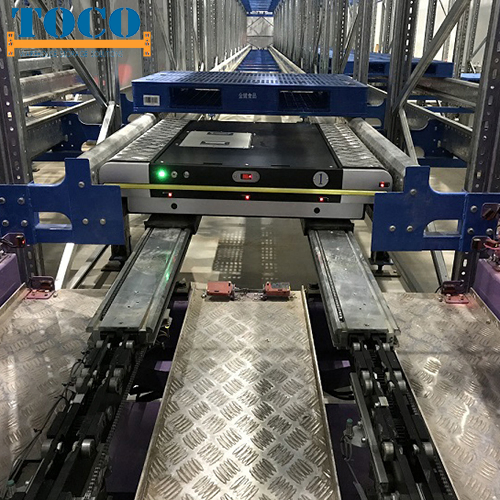

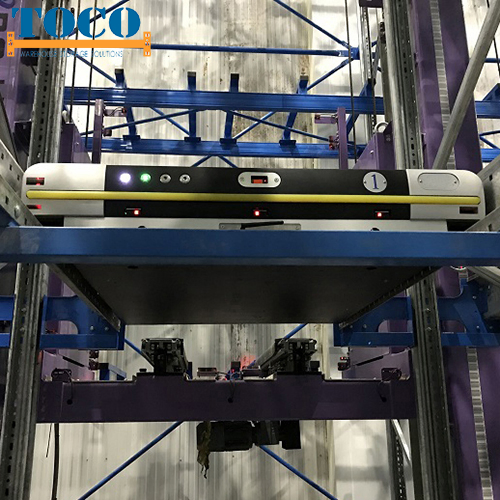

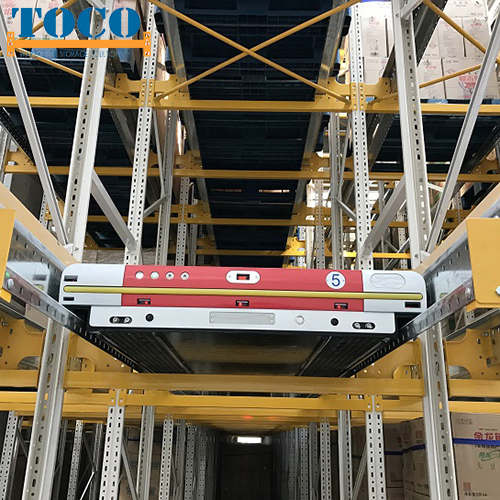

Radio Shuttle Technical Parameters

Loading CapacityMax 1500kg - 2000kg
Running SpeedVmax (Empty): 1.0m/s | Vmax (Full): 0.8m/s
Drive MotorBrushless servo motor 48VDC 600W
Lift Height≤45mm
Control SystemSiemens S7-1200 PLC
Positioning SensorLaser sensor (Germany P+F/SICK)
Power SupplyLithium battery (48V, 30AH)
Running Time≥8 hours
Operation ModeRemote control
Noise Level≤60db

Key Features & Benefits

1
High Density: More than 80% warehouse space utilization.
2
Dual Access: Fulfills both FIFO (First-In-First-Out) and LIFO modes.
3

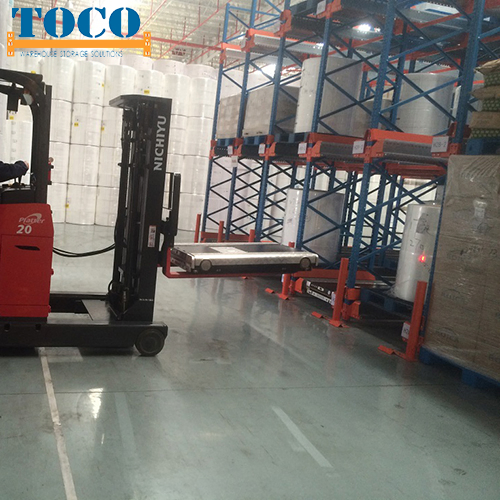

Enhanced Safety: Forklifts do not enter the racking, protecting operators and structures.
4
Efficiency: Significant improvement in turnover speed and work efficiency.
🖼

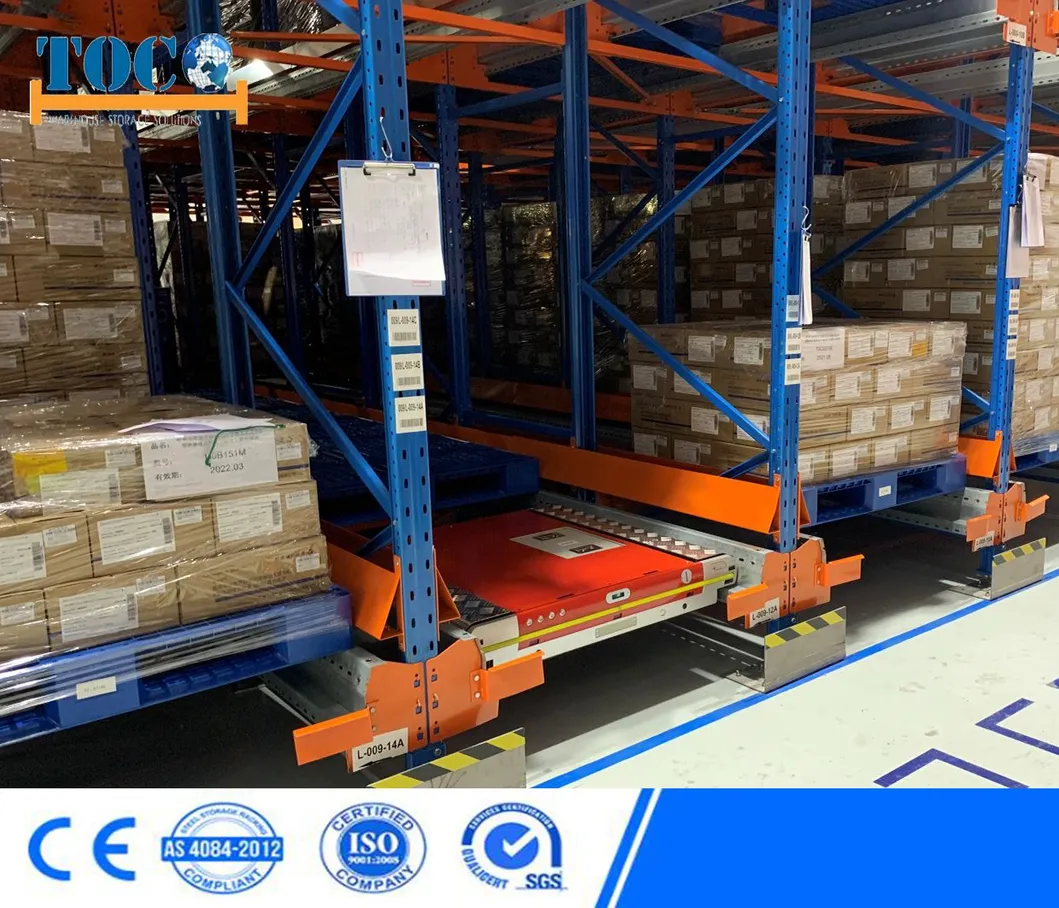

System Applications

Frequently Asked Questions
What is the standard lead time for an order?
Typically, the lead time is between 14 to 21 working days after the deposit is received, depending on the scale of the project.
Can the shuttle system work in cold storage environments?
Yes, the system is specifically designed to operate efficiently in low-temperature environments down to -30°C, making it ideal for food and beverage cold chain logistics.
What are the main advantages of this system over traditional racking?
The system provides higher density storage (over 80% utilization), improved safety as forklifts don't enter the racks, and faster throughput via semi-automated shuttle movement.
Is there a minimum order quantity (MOQ)?
We do not have a strict MOQ for most standard products. However, for cost-effectiveness in shipping and operation, a 20ft container order is generally recommended.
How is the racking system installed?
We provide detailed assembly instructions and technical documents. If required, we can also arrange for professional engineers to provide on-site installation assistance.
What is the expected lifespan of the racking?
The steel racking structure is designed for durability with a lifespan of 10+ years under normal usage and proper maintenance.
